Optiview is a powerful graphical user interface for the efficient data acquisition, storage and data retrieval. iView is a complementary software for real-time calculation of Tg, degree of cure etc.

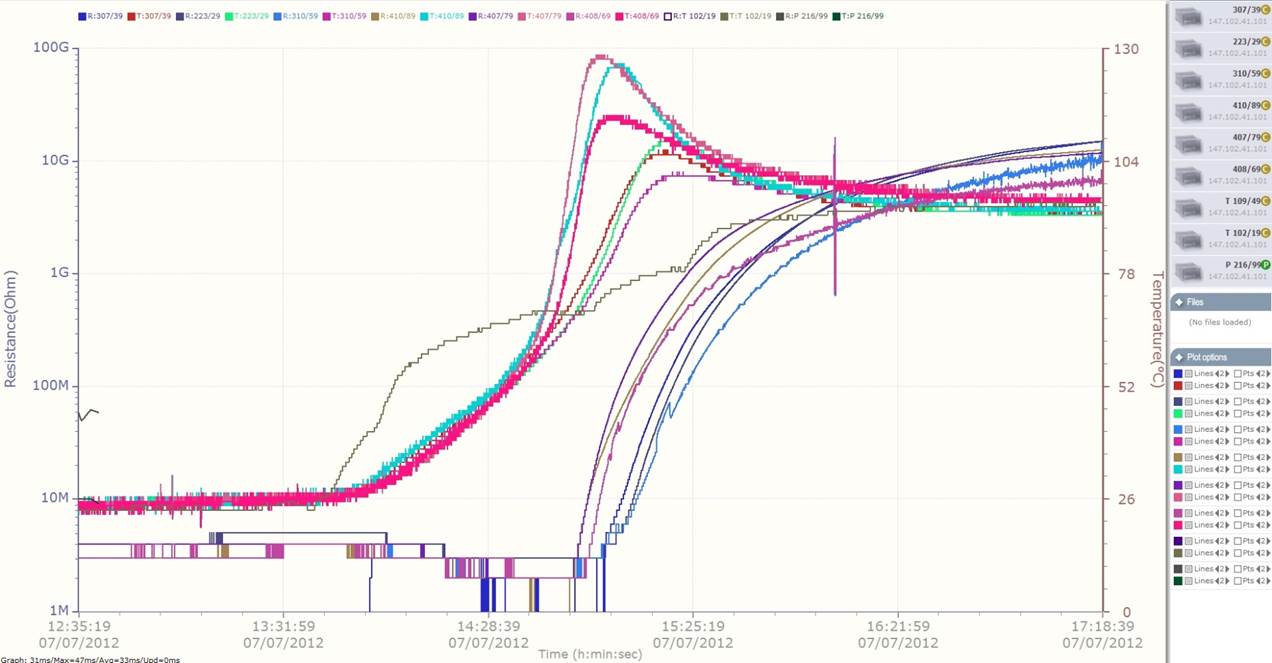

Optiview is a versatile and powerful graphical user interface for the efficient overview, monitoring, storage and retrieval of the data measured by Optimold and Optiflow. OptiView provides the opportunity to post-process data, to load various curves stored previously and print graphs.
Furthermore, OptiView can provide real-time feedback to other software such as Labview™ for real-time process control.
Following a long-term research, development and extended validation with our industrial customers, we can offer a unique software of the real-time prediction of the Glass Transition temperature (Tg), degree-of-cure, viscosity and other resin properties such as mixing ratio deviations for many epoxy and other resins based on the measured electrical resistance and temperature.

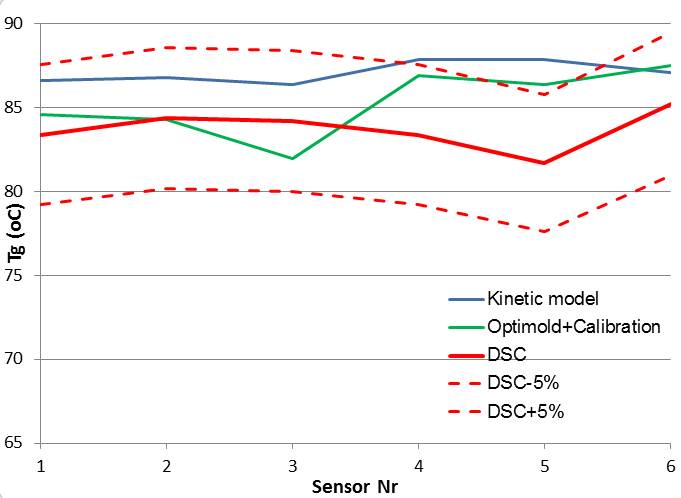

As can be seen in the figure below from the comparison between the real-time calculated Tg, the DSC calculated Tg and the kinetic model based at 6 different locations in a large and thick resin infused laminate, a very accurate correlation can be achieved even under harsh conditions.
